DABPRESS 10-12 Ton Hydraulic Cylinder Ram | Replacement Jack for Mini, Driptech, and 12-Ton Pro Rosin Presses
You Save: $60.00 (30%)
Tips:
DABPRESS 10-12 Ton Hydraulic Cylinder Ram Replacement
Official OEM Replacement | Heavy-Duty Performance | Compatible with 10T & 12T Models
Restore Your Pressing Power: Precision-Engineered Replacement Ram
Keep your extraction station running at peak performance with the Official DABPRESS Hydraulic Cylinder Ram. Specifically customized for our line of heavy-duty heat presses, this replacement cylinder ensures you maintain the precise pressure required for high-yield solventless extractions. Whether you are performing routine maintenance or replacing a high-mileage part, this ram is the only OEM solution guaranteed to fit your 10-ton or 12-ton DABPRESS frame perfectly.
Product Highlights & Core Features
- Customized Hydraulic Force: Available in 10-ton and 12-ton configurations, these cylinders are purpose-built for the unique vertical and horizontal stresses of rosin pressing.
- Complete Fitting Kit Included: Comes with a pair of ZG 1/4" fittings, including a female fitting on the cylinder. This allows for a fresh, leak-free connection to your existing hydraulic hose.
- Emergency Spare O-Rings: Every cylinder includes a full set of rubber O-rings as spare parts. Keep these in your toolkit to ensure zero downtime during high-volume sessions.
- Double-Checked Durability: Every ram undergoes a rigorous pressure-leak test before shipping to guarantee a long service life and consistent tonnage under heat.
- Smooth Stroke Action: The 1.53" diameter ram is polished for low-friction movement, providing the "slow and steady" pressure ramp-up that the DABPRESS community trusts.
Expert Advice: Finding the Perfect Fit
To ensure you order the correct replacement, please verify your press model below:

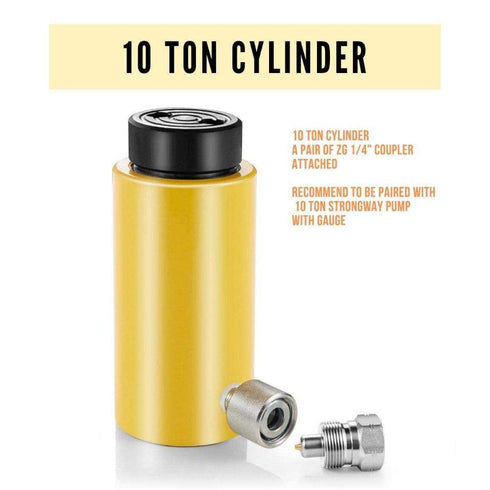

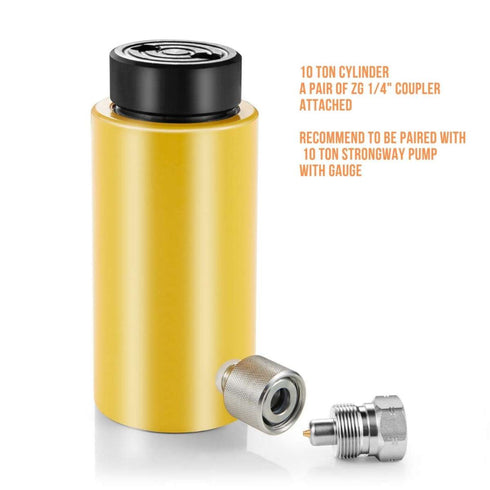

- 10-Ton Portable Frame (dp-hf10t): Uses the 10-Ton Cylinder.
- 10-Ton Driptech / Mini Press (dp-hr10t35v / dp-hr10t35): Uses the 10-Ton Cylinder.

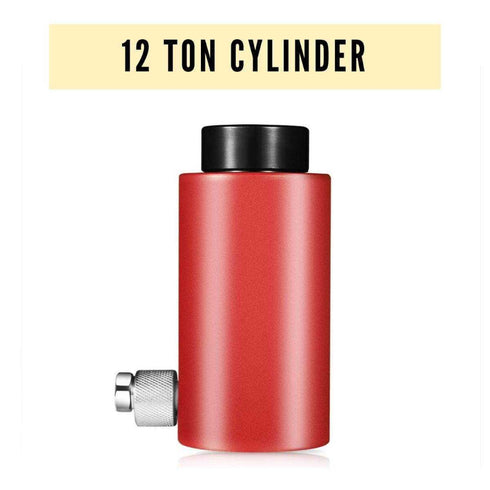

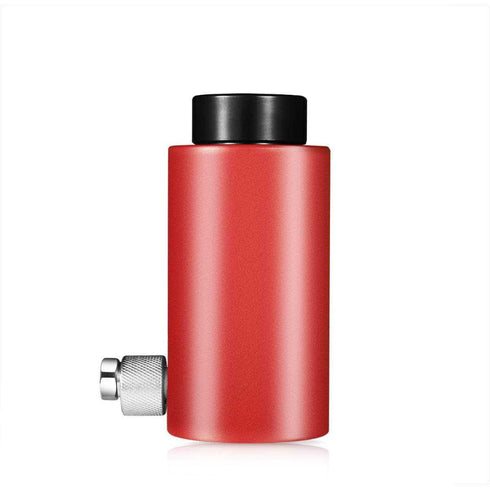

- 12-Ton Press Pro (dp-hr12t47): Uses the 12-Ton Cylinder.
- Maintenance Tip: When installing, ensure the ZG 1/4" fittings are tightened securely with thread sealant to prevent air bubbles in the hydraulic line, which can cause "spongy" pressure.
Technical Specifications
| Height | 5.6" (14.2 cm) |
| Cylinder Inner Diameter | 1.81" (46 mm) |
| Ram Diameter | 1.53" (3.9 cm) |
| Net Weight | 6.17 lbs (2.8 kg) |
The "Zero-Leak" Installation Protocol
- Hydraulic Purge: After connecting the new ram, cycle the jack a few times without material to bleed any trapped air from the system.
- Fitting Check: If the original male fitting on your hose doesn't seat perfectly, use the included ZG 1/4" replacement fittings for a seamless seal.
- O-Ring Storage: Store the included spare O-rings in a cool, dry place away from direct sunlight to prevent the rubber from degrading.
- Pressure Testing: Always perform a test squeeze at 25% capacity before jumping into a full 10-ton or 12-ton session.
DABPRESS | ENGINEERED FOR PURITY. BUILT TO WITHSTAND THE SQUEEZE.
Troubleshooting Collection:
In order to provide rosineer with the best experience, we collected the past complaints in the list; I would also consider it will be helpful for you. We also especially look forward to you sharing your suggestions and comments, and the issues you have encountered to us via support@dabrpess.com (updating).
- My Rosin Press Hydraulic Hand Pump Will Not Maintain Pressure Well, Why?
- Rosin Press Delivered the Inaccurate Temperature After Measuring with My Infrared (IR) Thermometer Gun
- My Bottle Jack Rosin Press Does Not Hold Pressure, Why?
- Why Can't We Use Rosin Press to Produce the Puck of Flower or Hash?
- Piston Rod of Hydraulic Cylinder Rosin Press Can Lift But It Can Not Move Back
- I Would Like to Upgrade Dabpress Rosin Press, Is This possible and Which Parts Would I Need?
- How to Replace the Bottle Jack?
- About 2x4" Rosin Pre Press Mold, Why Is the inside of the Mold Not 2x4"?
- How to Replace PID module?
- My Temp Controller Box Caused the Issue After Changing the Parameters, How to Fix It?
