DABPRESS Hydraulic Hand Pump with Gauge - Pairs It with 10 and 12-Ton Rosin Heat Press Machine

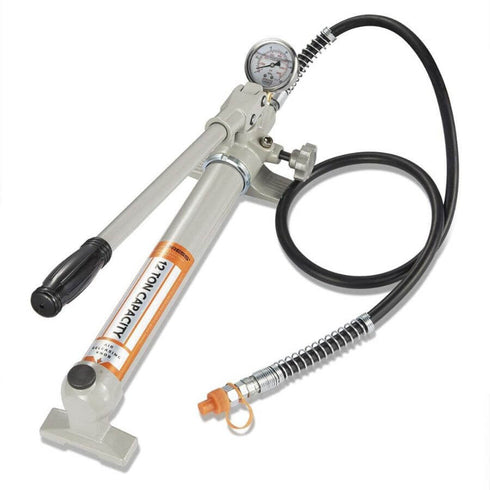

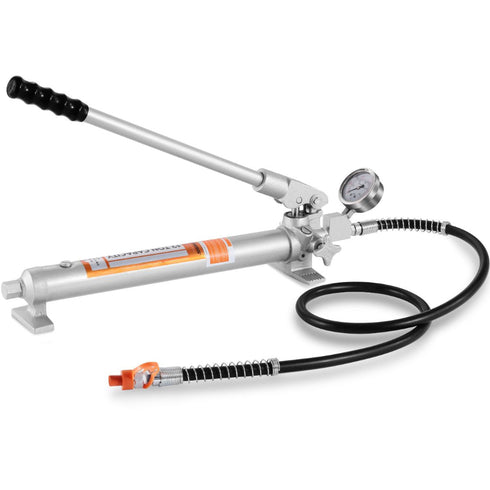

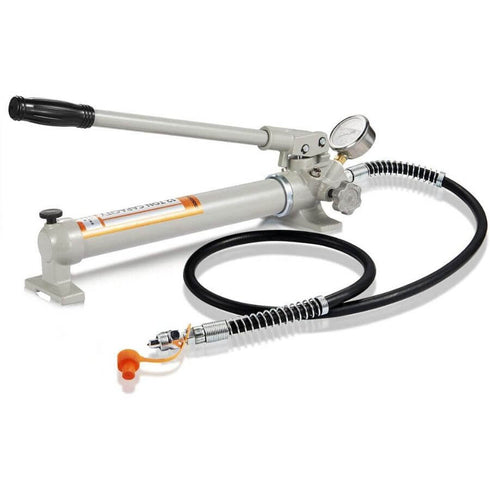

Hydraulic Hand Pump with Gauge - Pairs It with 10 and 12-Ton Rosin Press Machine
Features:
- Pressure Gauge Included - Installed at a 45-degree angle at the front of the pump makes the easy reading pressure (PSI) while working.
- 1.5m Hose Included - Includes an extra-long handle with a rubberized grip for comfort and easy operation.
- NPT 1/4 Coupler Attached - Easily adapts to hoses, rams, pumps, spreaders, and other accessories using common ZG 1/4-inch fittings.
- Dust-proof Cap Attached - The red dust cap is attached to help prevent dust or foreign matter from entering the fitting portion when the connector is detached.
- Durable Hand Pump - Durable solid steel construction, non-slip handle included, easily handles lift jobs up to 12 tons.
Specification:
- Capacity: 12 Ton
- Coupler: NPT 1/4" Male Included
- Max Pressure: 9500 PSI ( 63Mpa )
- Gross Weight: 8.5kg / 18.7Lbs
- Length of Hose: 330mm / 13"
- Dimension of Package: 740 x 260 x 210mm / 29.1" x 10.2" x 8.26"
- Dimension of Pump: 630 x 155 x 170mm / 24.8" x 6.1" x 6.7"
Quality Control Standard:
- 0 ~ 4000psi, it is about 2 scale pressure pointing off
- 4000 ~ 9000psi, it is about 1-1.5 scale pressure pointing off
Tips: The pump is sealed with ball valves, and the sealing performance will be better over 4,000 psi pressure.
Works with the following equipment:
- dp-hf10t | 10-ton portable frame
- dp-hr10t35v | 10-ton driptech press
- dp-hr10t35 | 10-ton mini press
- dp-hr12t47 | 12-ton press pro
Cautions:
- 6-month limited warranty for the hand pump.
- Please purge a hydraulic system of air via a bleeding valve by hand before starting to use it.
- The valve is located in the direction indicated by the arrow ( Label on the equipment ).
- Safe operation temp: 40°F - 105°F ( 4°C - 41°C ).
- Only anti-foaming jack oil allows adding to the pump.
Tips:
- Included NPT 1/4" male coupler/fitting on the hose.
- We also attached a pair of fitting in the package of the unit, keep it, please!
Precaution for Use:
- My Rosin Press Hydraulic Hand Pump Will Not Maintain Pressure Well, Why? - Learn More
- Piston Rod of Hydraulic Cylinder Rosin Press Can Lift But It Can Not Move Back - Learn More
User Manual & Guide:
12-Ton Capacity Hand Pump and Hydraulic Cylinder Rosin Press
Troubleshooting Collection:
In order to provide rosineer with the best experience, we collected the past complaints in the list; I would also consider it will be helpful for you. We also especially look forward to you sharing your suggestions and comments, and the issues you have encountered to us via support@dabrpess.com (updating).
- My Rosin Press Hydraulic Hand Pump Will Not Maintain Pressure Well, Why?
- Rosin Press Delivered the Inaccurate Temperature After Measuring with My Infrared (IR) Thermometer Gun
- My Bottle Jack Rosin Press Does Not Hold Pressure, Why?
- Why Can't We Use Rosin Press to Produce the Puck of Flower or Hash?
- Piston Rod of Hydraulic Cylinder Rosin Press Can Lift But It Can Not Move Back
- I Would Like to Upgrade Dabpress Rosin Press, Is This possible and Which Parts Would I Need?
- How to Replace the Bottle Jack?
- About 2x4" Rosin Pre Press Mold, Why Is the inside of the Mold Not 2x4"?
- How to Replace PID module?
- My Temp Controller Box Caused the Issue After Changing the Parameters, How to Fix It?
